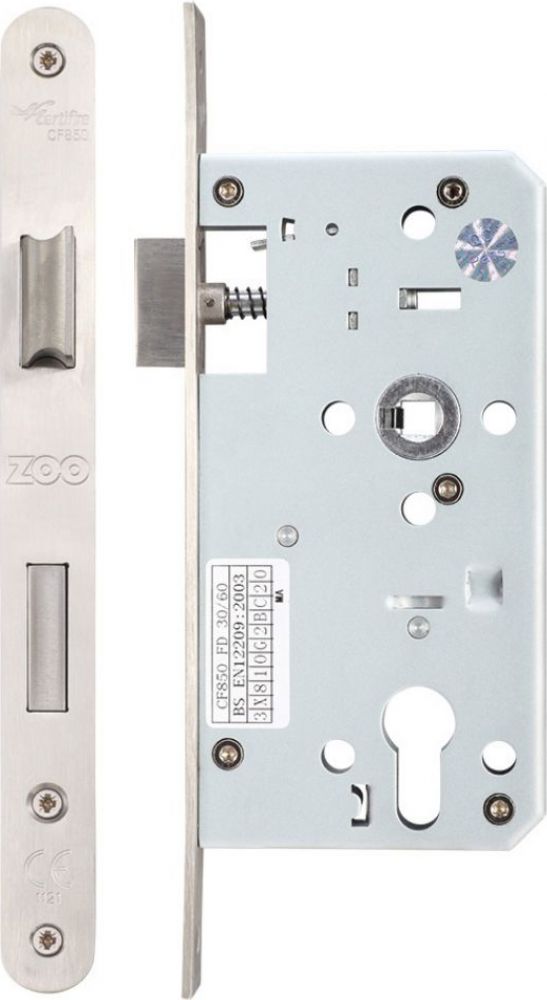

Zoo ZDL7255RSS Din Euro Sashlock - 72mm C/C Backset 55mm Radius Satin Stainless

Zoo ZDL7255RSS Din Euro Sashlock - 72mm C/C Backset 55mm Radius Satin Stainless features:

• Sprung mortice latch and euro cylinder deadlock combined lock case

  • For use on lockable doors that also require lever handle operation

  • Bolt through facility within lock for handle and escutcheon for a secure fitting

  • Satin brushed stainless steel finish forend and strike plate and deadbolt

  • Double throw style deadbolt, requires two turns of key or thumbturn cylinder

  • Similar to a normal Euro Sashlock, but with a greater distance between the lock centres

  • Radius type faceplate forend for a classic look

  • Dimensions: (Given in millimetres)

  Size A :	Case Width	- 85mm
  Size B :	Backset	- 55mm
  Size C :	Case Height	- 165mm
  Size D :	Faceplate	- 235x22x3mm
  Size E :	Lock Centres	- 72mm

  • Backset is measured from the front of the lock, to the middle of the spindle hole

  • Supplied singularly with fixing screws, anti-rattle strike plate and box keep

  • Plastic black dust box keep is supplied to tidy up the chiseling work with the frame of the door

  • UK and European standard 8mm spindle hole for operation with spindle of lever handle

  • Certifire Fire rated to 30 and 60 minute timber doors, conforms to BS EN 12209 grade 3

  • Covered by a 10 year manufacturer's operational mechanical guarantee

  • Please order euro cylinder barrel lock and door furniture separately
