Description

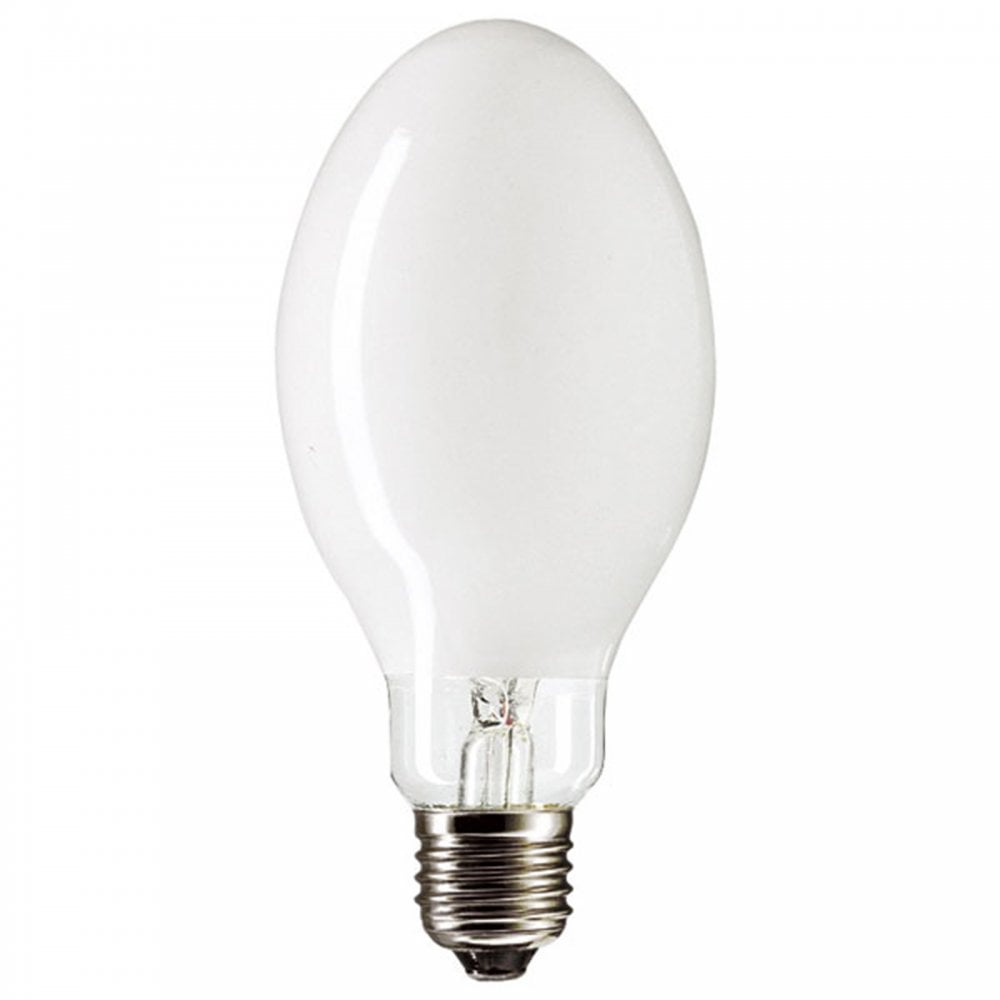

Venture Lighting HPSE.70W/ E27 High Pressure Sodium Lamps 00044 features:
- 70w bulb.
-
Performance Data
-
Rated Light Output (Lumens @ 100 hours): 5300
-
Lamp Lumens per Watt (100hrs): 83
-
Rated Life (Hrs @ 10Hr./Start): 28000+
-
Correlated Colour Temperature (K): 2000
-
Chromaticity (CIE – X Y): 540,420
-
Colour Rendering Index (CRI) or (Ra): 25
-
Typical Warm Up Time (Minutes): 5
-
Typical Hot Restart Time (Minutes): 1
-
Burning Position: Universal
-
Physical Data
-
Base Designation: E27
-
Bulb Diameter (mm): 72
-
Max. Overall Length (mm): 156
-
Max. Base Temperature (°C): 210
-
Max. Bulb Temperature (°C): 400
-
Socket Pulse Rating (KV) 2.8
-
Luminaire Type: Open/ Enclosed
-
Lamp Electrical Data
-
Nominal Lamp Wattage (W): 70
-
Lamp Operating Voltage (V): 90
-
Lamp Operating Current (A): 1
-
Min. Open Circuit Voltage (RMS) 198
-
Min. Starting Pulse (Peak V) 1800-2300
-
Min. Pulse Width (Microseconds): 1 @2700V
-
Min. Pulse Rate Per ½ cycle: 1
- Pulse Position (Electrical Degrees): 60-90, 240-270
