Description

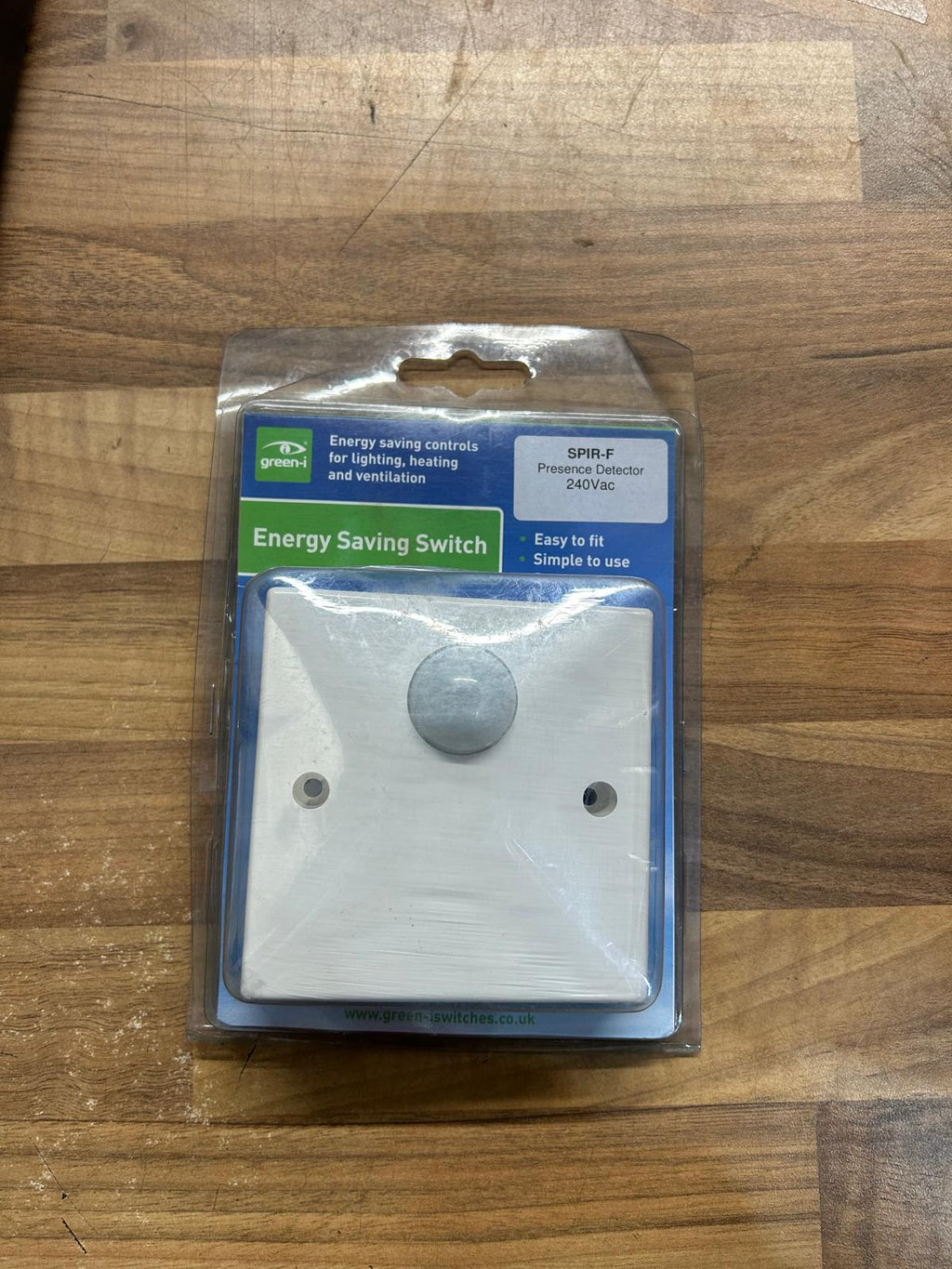

Presence Detector Green-i CP Electronics SPIR-F features:
-
The SPIR-F A is a simple presence detector ideal for the automatic switching of washroom extractor fans and are easy to install onto a single gang standard switch box.
The SPIR-F series of presence detector switches are designed to provide automatic control of lighting, heating or ventilation loads. They detect movement using a PIR sensor and turn the load on. When an area is no longer occupied the load will switch off after an adjustable time out period.
An optional internal light sensor provides additional energy saving in lighting appli-cations (SPIR-LSF). When an area is occupied lighting is only switched on when the level of natural light is below a preset level.
When the unit is first powered up the PIR sensor will always detect immediately regardless of whether the room is occupied. A selectable power up delay allows the installer to choose whether the load comes on immediately when the unit is pow-ered up or is kept off for a small time (about 40 seconds) to allow the sensor to settle.
The SPIR-F series of presence detector switches are designed to provide automatic control of lighting, heating or ventilation loads. They detect movement using a PIR sensor and turn the load on. When an area is no longer occupied the load will switch off after an adjustable time out period.
An optional internal light sensor provides additional energy saving in lighting appli-cations (SPIR-LSF). When an area is occupied lighting is only switched on when the level of natural light is below a preset level.
When the unit is first powered up the PIR sensor will always detect immediately regardless of whether the room is occupied. A selectable power up delay allows the installer to choose whether the load comes on immediately when the unit is pow-ered up or is kept off for a small time (about 40 seconds) to allow the sensor to settle.
16 Amp Resistive Load
10 Amp Incandescent Lighting Load
6 Amp Fluorescent Load
3 Amp Compact Fluorescent Load
3 Amp Low Voltage Lighting Load
Adjustable Timer 10 Seconds to 60 Minutes
Terminal Capacity 4mm
Detection Distance 5-9 Metres
Time & Lux level adjustable settings
